CB 20

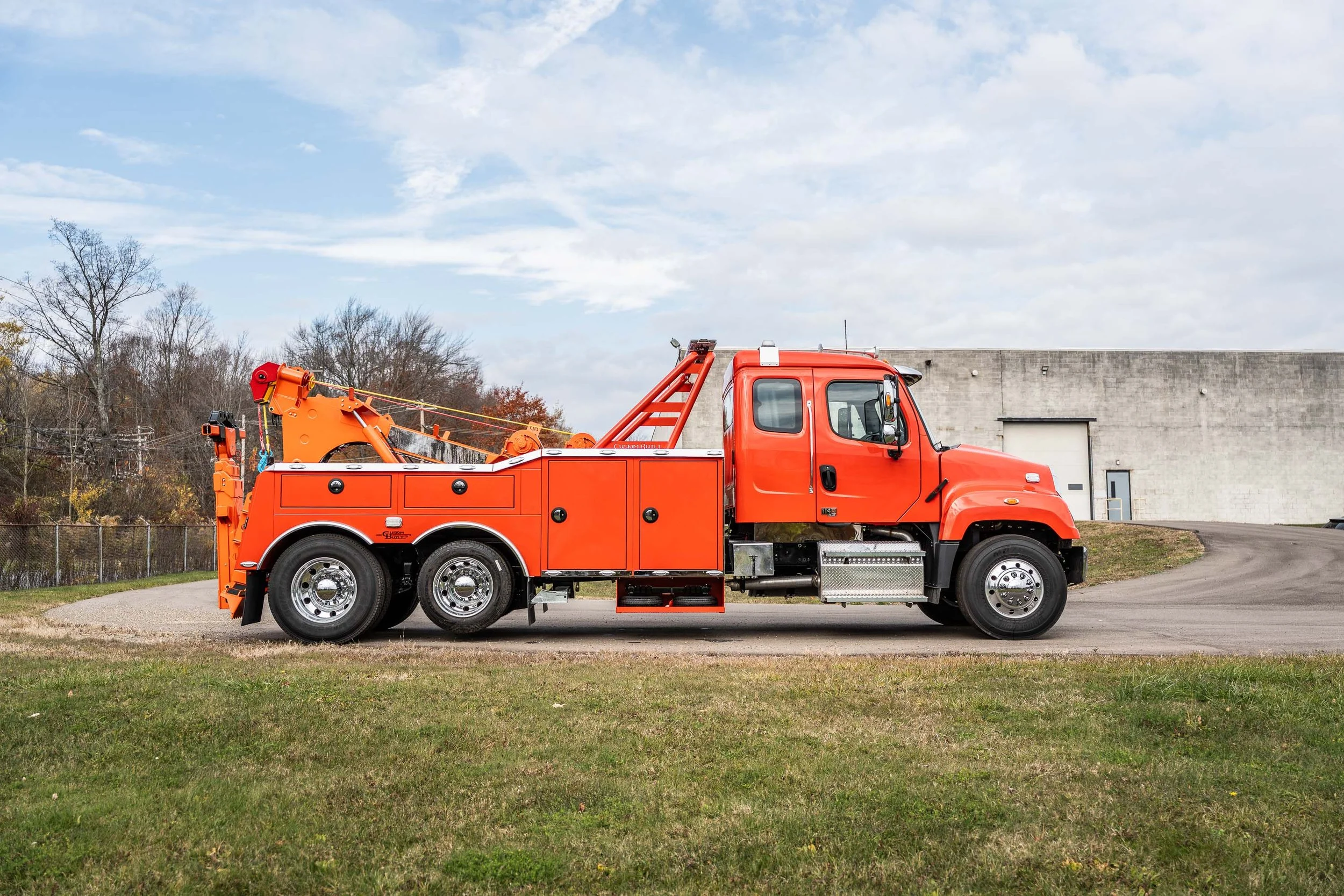

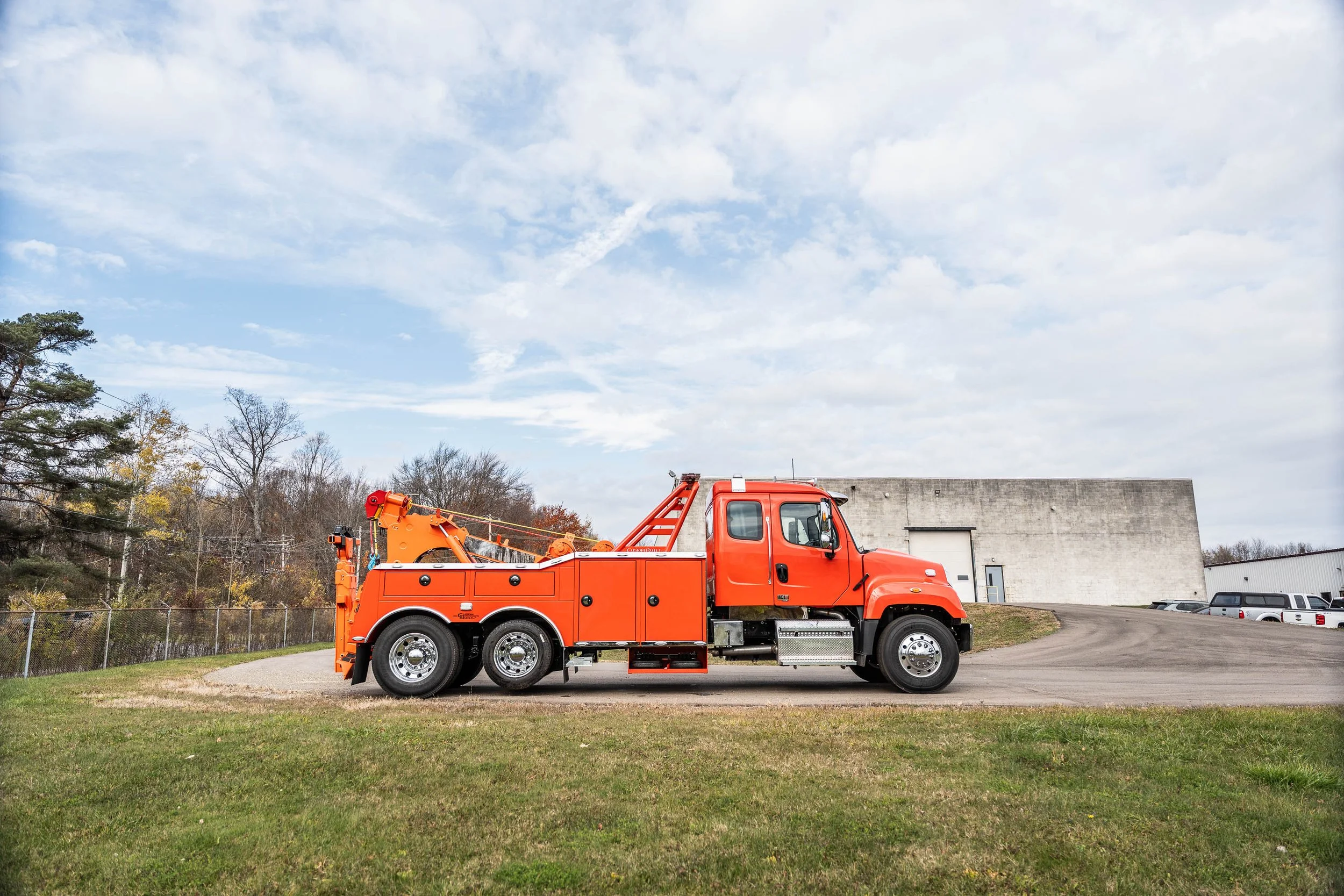

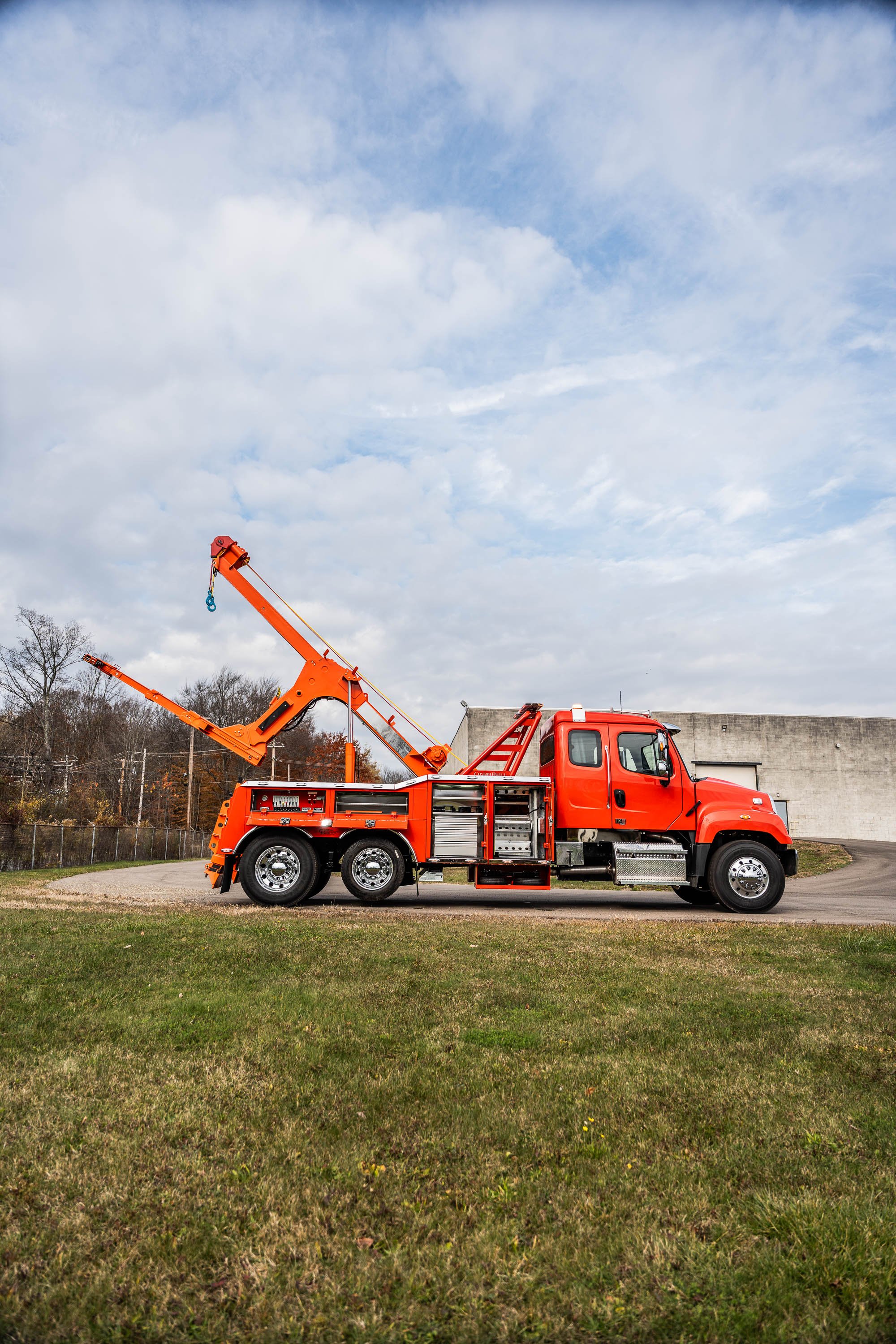

The CB 20 with over 108” of reach on the underlift is built to handle a wide variety of vehicles such as motor homes, delivery vans, and city tractors. This single axle unit, with features only found on larger units, showcase a 20-ton recovery boom and (2) 20,000lb single speed winches.
SPECIFICATIONS CB 20

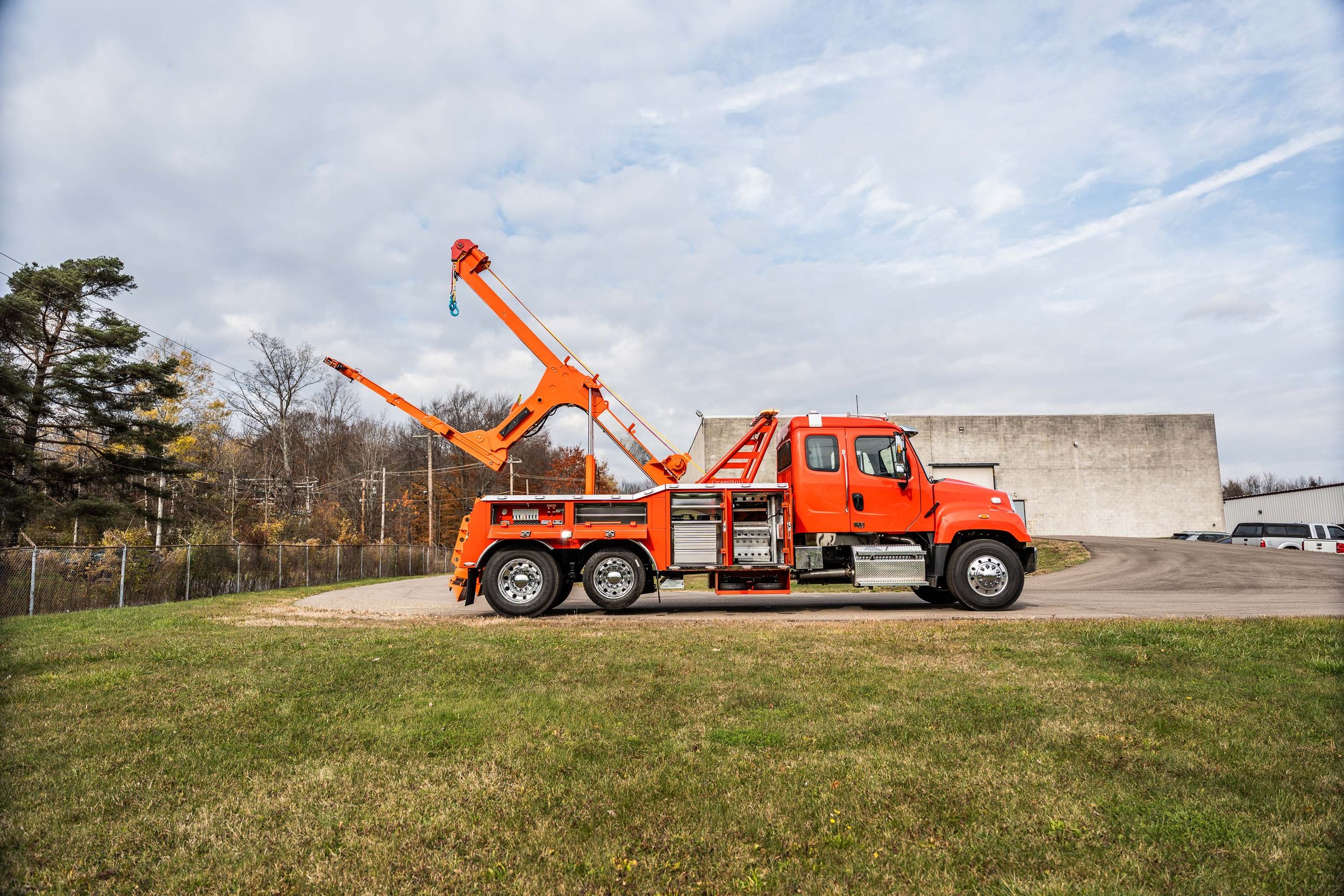

RECOVERY BOOM
RETRACTABLE LIFT CYLINDERS 4” BORE
BOOM RETRACTED 40,000LB @ MINIMUM 45 DEGREES
BOOM EXTENDED 8,000LB @ MINIMUM 45 DEGREES
BOOM EXTENSION 84”
REACH PAST TAIL BOARD 100”
WINCH SPECIFICATIONS
2 WINCHES 20,000LB SINGLE SPEED
AIR FREE SPOOL

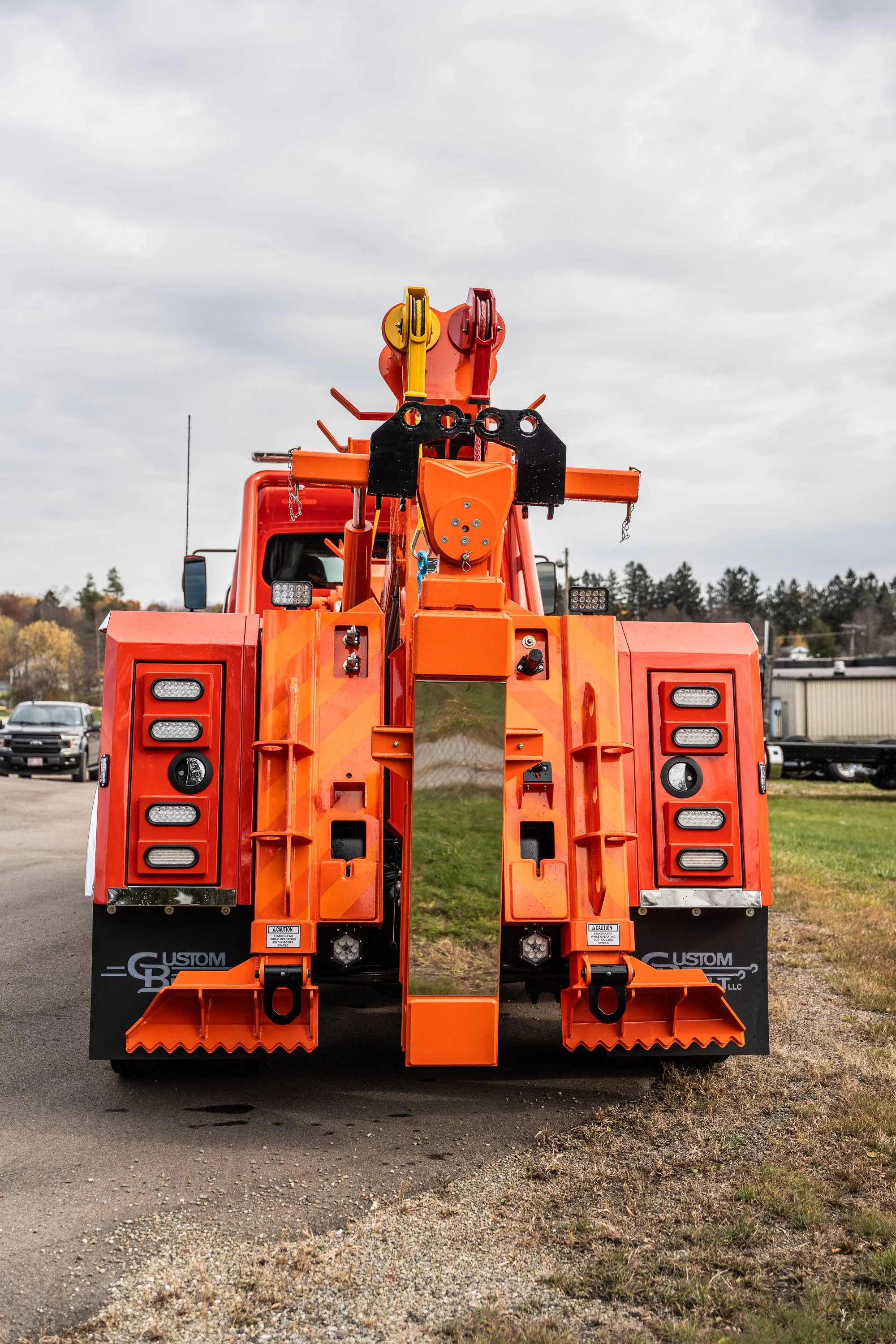

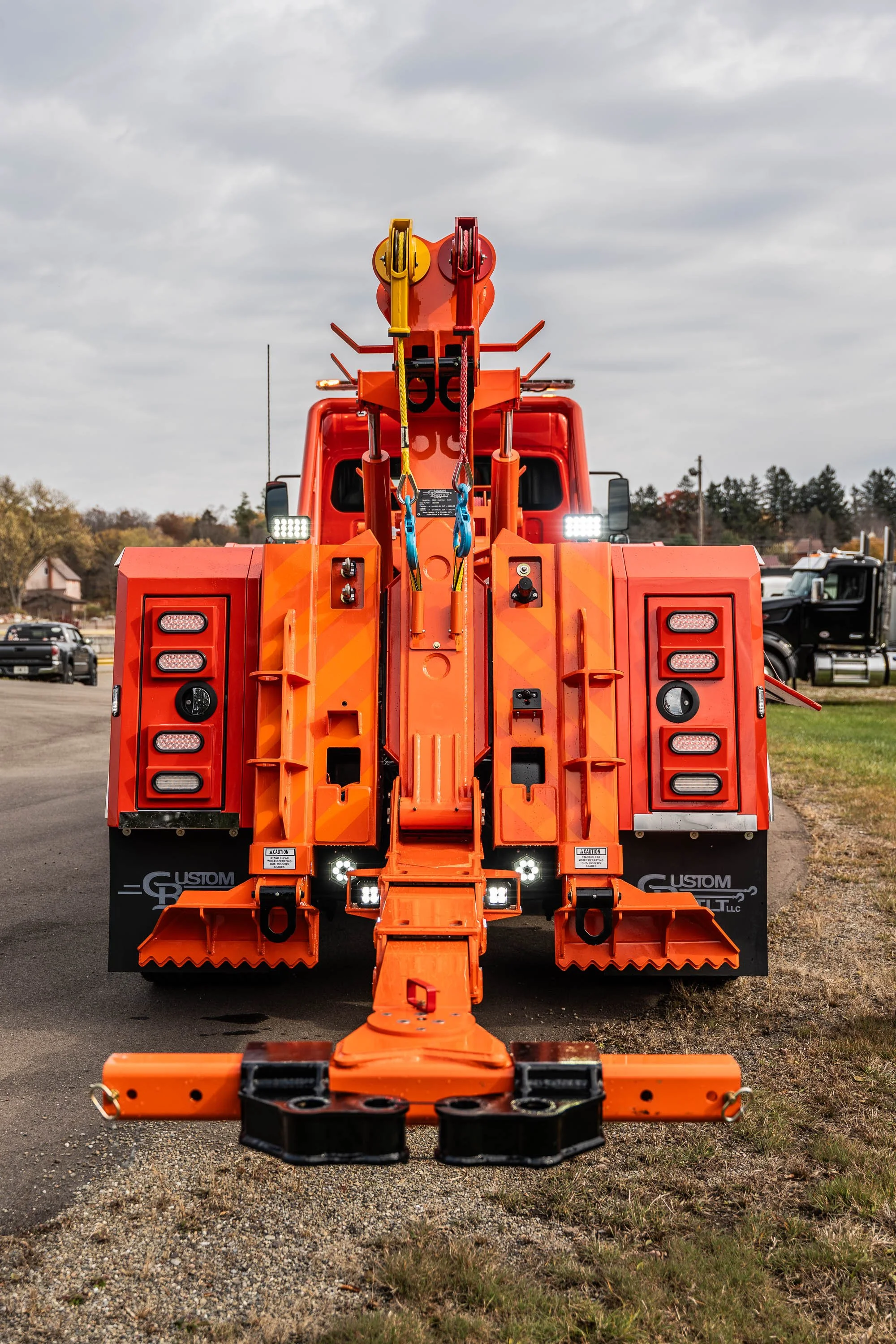

UNDERLIFT
UNDERLIFT FULLY RETRACTED 50” 20,000LB RATING
UNDERLIFT FULLY EXTENDED 100” 8,000LB RATING
TOW CAPACITY 50,000LBS
CENTER OF REAR AXLE TO TAIL OF FRAME 30”
CHASSIS RECOMMENDATIONS
MINIMUM FRONT AXLE GAWR 10,000LB
MINIMUM REAR AXLE GAWR 20,000LB
MINIMUM RBM EACH FRAME RAIL 1,200,000 IN-LBS
-
![]()
